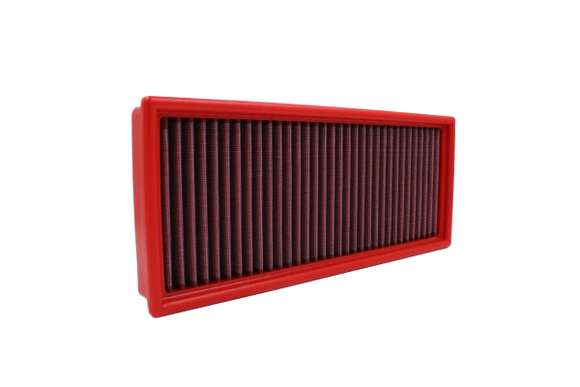

BMC Air Filter for Mercedes Benz & Fiat Lancia- FB224/01

$97.17 AUD

Tax includedShipping calculated at checkout

BMC Air Filters Part No. FB224/01 Barcode: 8032872862853

3+ in Stock at MODE Locations!

BIG INVENTORY
MODE is Australia's Largest Retailer & Wholesaler of Performance & Aesthetic Parts & accessories for European vehicles.

Description ABOUT MODE. MODE+ Rewards

The panel / cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).


Air flow chart for a sample BMC air filter against an OEM paper filter
Temperature 25C° - Humidity 25% - Pressure 1020mbar
Test ran with oem airbox, and the related air flow constrictions.
This chart has a pure illustrative purpose and does not refer to the present filter.

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

For any other info, please see the FAQ page.

COMPATABILITY

FIAT


FIAT
Model
HP
Chassis
Year
Engine
PUNTO II (188/188AX) 1.2 16V ELX / HLX 80 188 1999 > 2010 176B9.000
PUNTO II (188/188AX) 1.2 16V ELX Speed gear 80 188 1999 > 2010 188A5.000
PUNTO II (188/188AX) 1.2 16V Sporting 80 188 1999 > 2010 188A5.000
PUNTO II (188/188AX) 1.2 16V Sporting S. G. 80 188 1999 > 2010 188A5.000
LANCIA
Model
HP
Chassis
Year
Engine
Y (840A) 1.2 16V (Euro 3) 80 840AG1A 2000 > 2003 188A5.000



MERCEDES-BENZ

MERCEDES
Model
HP
Chassis
Year
Engine
CL (C216) AMG CL 63 [2 Filters Required] 544 C216.374 2010 > 2013 M157.980
CL (C216) AMG CL 63 Performance + [2 Filters Required] 571 C216.374 2010 > 2013 M157.980
CL (C216) CL 500 Blue Efficiency [2 Filters Required] 435 C216.373 / 394 2010 > 2013 M278.920
CLASS E (A207/C207) E 500 Blue Efficiency [2 Filters Required] 408 207 2011 > 2016 M278.922
CLASS E (W212/S212) AMG E 63 [2 Filters Required] 525 212.074 / 274 2011 > 2016 M157.980/981
CLASS E (W212/S212) AMG E 63 [2 Filters Required] 557 212.074 / 274 2011 > 2016 M157.980/981
CLASS E (W212/S212) AMG E 63 S [2 Filters Required] 585 212 2013 > 2016 M157.980/981
CLASS E (W212/S212) E 500 Blue Efficiency [2 Filters Required] 408 212 2011 > 2016 M278.922
CLASS G (W461/463) AMG G 63 [2 Filters Required] 544 W463.272/273 2012 > 2015 M157.980,M157.984
CLASS G (W461/463) AMG G 63 [2 Filters Required] 571 W463.272 2015 > 2018 M157.984
CLASS M (W166) AMG ML 63 [2 Filters Required] 525 166074 2012 > 2015 M157.982
CLASS M (W166) AMG ML 63 Performance + [2 Filters Required] 557 166074 2012 > 2015 M157.982
CLASS M (W166) ML 500 Blue Efficiency [2 Filters Required] 408 166073 2012 > 2015 M278.928
CLASS S (W221) AMG S 63 [2 Filters Required] 544 W221.174 2010 > 2013 M157.980
CLASS S (W221) AMG S 63 PP [2 Filters Required] 571 221.074/174 2010 > 2013 M157.980
CLASS S (W221) S 500 Blue Efficiency [2 Filters Required] 435 W221 2010 > 2013 M278.932
CLASS S (W222,A/C217) AMG S 63 [2 Filters Required] 585 W222.077 /178,C217.378 / 478 2013 > 2017 M157.985
CLASS S (W222,A/C217) S 500 435 W222.184/984 2013 > 2017 M278.929
CLASS S (W222,A/C217) S 500 [2 Filters Required] 455 W222.082 / 182 / 085 / 185,C127.382 / 385 / 482 2013 > 2017 M278.929
CLASS S (W222,A/C217) S 500L 4MATIC 421 W222.185 2017 > M278.910
CLASS S (W222,A/C217) S 550 (US) [2 Filters Required] 455 - 2013 > 2017
CLS (C218) / CLS Shooting Brake (X218) AMG CLS 63 [2 Filters Required] 525 218 2011 > 2013 M157.980/981
CLS (C218) / CLS Shooting Brake (X218) AMG CLS 63 Performance + [2 Filters Required] 557 218 2011 > 2018 M157.980/981
CLS (C218) / CLS Shooting Brake (X218) AMG CLS 63 Performance + [2 Filters Required] 585 218 2013 > 2018 M157.980/981
CLS (C218) / CLS Shooting Brake (X218) CLS 500 [2 Filters Required] 408 218 2011 > 2018 M278.922
GL / GLS (X166) AMG 63 [2 Filters Required] 557 166874 2012 > 2015 M157.982
GL / GLS (X166) AMG 63 [2 Filters Required] 585 166.874 / 875 2015 > 2019 M157.982
GL / GLS (X166) GL/GLS 450 [2 Filters Required] 367 166872 2012 > 2015 M278.928
GL / GLS (X166) GL/GLS 500 4MATIC [2 Filters Required] 422 166871 2016 > 2019 M278.912
GL / GLS (X166) GL/GLS 500 [2 Filters Required] 455 166873 2015 > 2019 M278.928
GL / GLS (X166) GL/GLS 500 Blue Efficiency [2 Filters Required] 435 166873 2012 > 2015 M278.928
GLE (W166) AMG GLE 63 [2 Filters Required] 557 W166 2015 > 2019 M157.982
GLE (W166) AMG GLE 63 S [2 Filters Required] 585 W166 2015 > 2019 M157.982
GLE (W166) GLE 500 [2 Filters Required] 435 W166 2015 > 2018 M278.928
GLE (W166) GLE 500 [2 Filters Required] 455 W166 2015 > 2018 M278.928
GLE COUPÉ (C292) AMG GLE 63 [2 Filters Required] 557 C292 2015 > 2019 M157.982
GLE COUPÉ (C292) AMG GLE 63 S [2 Filters Required] 585 C292 2015 > 2019 M157.982
GLE COUPÉ (C292) GLE 500 [2 Filters Required] 455 C292 2015 > 2018 M278.928
MAYBACH II (X222) S 500 [2 Filters Required] 421 X222 2015 > 2017 M278.910
MAYBACH II (X222) S 500 [2 Filters Required] 455 X222 2015 > 2017 M278.929
SL (R231) AMG SL 63 [2 Filters Required] 537 R231.474 2012 > 2014 M157.983
SL (R231) AMG SL 63 [2 Filters Required] 585 R231.474 2014 > 2018 M157.983
SL (R231) AMG SL 63 PP Performance + [2 Filters Required] 564 R231.474 2012 > 2014 M157.983
SL (R231) SL 500 [2 Filters Required] 435 R231.473 2012 > 2015 M278.927
SL (R231) SL 500 [2 Filters Required] 455 R231.473 2015 > 2020 M278.927
